Product Details:
|
| Material: | AMS 5894, Wear Resistance | ||
|---|---|---|---|
| Highlight: | nitinol metal,nitinol alloy |
||

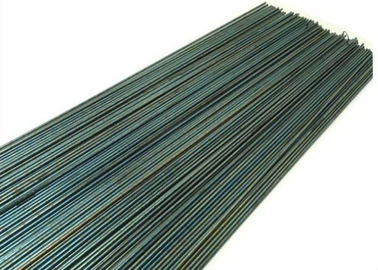

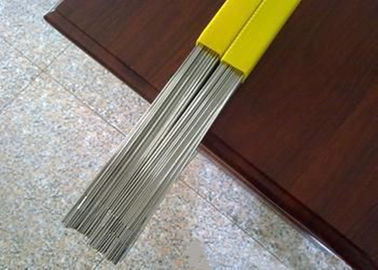

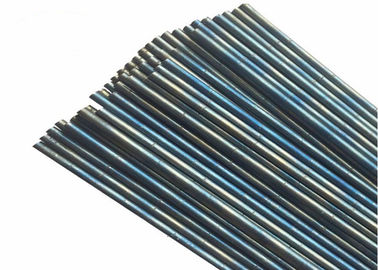

AMS 5894, STELLITE 6B fine wires for welding or parts request wear resistance at room and elevated temperatures
1 PRODUCT
AMS 5894, 60Co-28Cr-4.5W-1.15C (STELLITETM 6B) fine wires for welding or parts requiring wear resistance at room and elevated temperatures
2 EQUIVALENT DESIGNATION
AMS 5894, 60Co-28Cr-4.5W-1.15C, STELLITETM 6B, STELLITETM 6K
3 APPLICATION
These products have been used typically for parts requiring wear resistance and minimum galling or seizing tendencies at room and elevated temperatures, but usage is not limited to such applications.
Whether your application involves high-impact pulp agitators, critical directional drilling tools, or aerospace components, Stellite™ 6B can offer superior wear resistance and the mechanical properties needed to withstand the toughest of applications. Stellite™ 6B meets the requirements of Aerospace Material Specification AMS 5894.
Stellite™ 6B used for steam turbine erosion shields to protect the blades of turbines.
In addition to wear resistance, Stellite™ 6B has good resistance to a variety of corrosive media. This combination of properties makes Stellite™ 6B particularly useful in such applications such as food-handling machinery, chemical equipment and others where both wear and corrosion resistance are necessary.
4 CHEMICAL COMPOSITION (wt%):
| Material | Co | Ni | Si | Fe | Mn | Cr | Mo | W | C | P | S |
| Stellite™ 6B | Balance | ≤3.0 | 0.2-2.0 | ≤3.0 | 0.5-2.0 | 28.0-32.0 | ≤1.5 | 3.5-5.5 | 0.9-1.4 | ≤0.040 | ≤0.030 |
| Stellite™ 6K | Balance | ≤3.0 | 0.2-2.0 | ≤3.0 | 0.5-2.0 | 28.0-32.0 | ≤1.5 | 3.5-5.5 | 1.4-1.9 | ≤0.040 | ≤0.030 |
5 OVERVIEW
Stellite™ 6B
These products have been used typically for parts requiring wear resistance and minimum galling or seizing tendencies at room and elevated temperatures, but usage is not limited to such applications.
Whether your application involves high-impact pulp agitators, critical directional drilling tools, or aerospace components, Stellite™ 6B can offer superior wear resistance and the mechanical properties needed to withstand the toughest of applications. Stellite™ 6B meets the requirements of Aerospace Material Specification AMS 5894. All Stellite™ 6B products are accompanied by full material certifications and are DFARS compliant.
Stellite™ 6B used for steam turbine erosion shields has protected the blades of turbines for over 30 years of continuous service.
In addition to wear resistance, Stellite™ 6B has good resistance to a variety of corrosive media. This combination of properties makes Stellite™ 6B particularly useful in such applications such as food- handling machinery, chemical equipment and others where both wear and corrosion resistance are necessary.
Stellite™ 6K
Stellite™ 6K is excellent for cutting or scraping applications, such as knives or scraper blades.
6 CHARACTERISTICS
6.1 RESIST SEIZING AND GALLING
Stellite™ 6B is resistant to the effects of seizing or galling. In many cases, its low coefficient of friction allows sliding contact with other metals without damage by metal pick-up. Stellite™ 6B has been used in equipment where no lubricants were used because of the nature of the product being handled. Sleeves made of Stellite™ 6B move smoothly, with minimum resistance, even when operating in contact with other metal parts. They have been useful in inaccessible areas where efficient lubrication is impossible. Sleeves and bushings have resisted seizing even when lubricants were diluted by gasoline, cleaning fluids and other liquids that wash out an oil film. They have operated at peak efficiency even when lubricants decomposed under heat or were destroyed by abrasive particles.
6.2 RESIST EROSIVE WEAR
Stellite™ 6B
Parts made of Stellite™ 6B have a long service life, even under constant erosive conditions. This material has outstanding resistance to cavitation-erosion. The wrought structure results in improved abrasion wear resistance comparable to much harder cast materials. Stellite™ 6B used for steam turbine erosion shields has protected the blades of turbines for over 30 years of continuous service.
6.3 EXCELLENT HOT HARDNESS
Stellite™ 6B retains high hardness, even at red heat. Once cooled back to room temperature, it recovers its full original hardness.
6.4 GOOD IMPACT AND THERMAL SHOCK RESISTANCE
Stellite™ 6B combines wear and corrosion resistance with good impact strength and resistance to thermal shock.
The toughness of the wrought alloy depicted by its charpy impact energy goes up almost four fold compared to the cast version.
6.5 RESIST HEAT AND OXIDATION
High temperatures have little effect on the hardness, toughness and dimensional stability of these alloys. They are highly resistant to atmospheric oxidation at ordinary temperatures and have good resistance to oxidation at elevated temperatures.
6.6 CORROSION RESISTANCE
In addition to wear resistance, Stellite™ 6B has good resistance to a variety of corrosive media. This combination of properties makes Stellite™ 6B particularly useful in such applications such as food- handling machinery, chemical equipment and others where both wear and corrosion resistance are necessary.
7 PHYSICAL CONSTANTS
Density: 8.39 g/cm³
Melting Range: 1265 - 1354°C.
8 MECHANICAL PROPERTY
Tensile properties
Shall be shown in Table 2; determined in accordance with ASTM E8/E8M. Bars shall be tested in the longitudinal direction. Sheet and plate shall be tested in the transverse direction. Reduction in area is not applicable to plate or sheet under 0.5 inches (12.7 mm) in nominal thickness.
Covers Stellite™ 6B in the form of sheet and plate up to 25.4 mm thick and round bar up to 88.9 mm diameter.
| Property | Value |
| Tensile Strength | 896 MPa MIN |
| Yield Strength at 0.2% offset | 483 MPa MIN |
| Elongation in 4D | 5% MIN |
| Reduction in Area | 7% MIN |
Hardness
Hardness shall be 33-43 HRC, determined in accordance with ASTM E18.
Average Cavitation Erosion Data
| Alloy | Test Duration (hrs) | Weight Loss (mg) |
| Stellite™ 6B | 100 | 42.3 |
| 304 Stainless Steel | 7 | 39.9 |
Average Abrasive Wear Data
| Alloy | Condition | Volume loss(mm3) | Hardness Rockwell | Wear Coefficient |
| StelliteTM 6B | Mill annealed | 8.2 | C-38 | 0.471 x 10-3 |
| StelliteTM 6K | Mill annealed | 13.3 | C-46 | 0.946 x 10-3 |
| StelliteTM 25 | Mill annealed 1hr. at 871 °C | 53.0 | C-24 | 2.00 x 10-3 |
| 1090 Steel | water quenched +4 min. at 482°C | 37.2 | C-55 | 800 x 10-3 |
| 316 Stainless Steel | As received sheet | 81.4 | B-86 | 2.00 x 10-3 |
| 304 Stainless Steel | As received sheet | 1021.0 | B-92 | 3.00 x 10-3 |
9 HEAT TREATMENT
Wrought forms of Stellite™ 6B and Stellite™ 6K are supplied in the solution heat-treated condition, unless otherwise specified.
The product shall be solution heat treated by heating to 2250°F ± 25 (1232°C ± 14), holding at heat for a time commensurate with cross-section but not less than 15 minutes, and cooling at a rate equivalent to a still air cool or faster. Pyrometry shall be in accordance with AMS 2750.
10 STANDARD SPECIFICATION
SAE AMS 5894 Cobalt Alloys Bars Sheet and Plate 60Co-28Cr-4.5W-1.15C Solution Heat Treated
AMS2261 Tolerances, Nickel, Nickel Alloy, and Cobalt Alloy Bars, Rods, and Wire
AMS2269 Chemical Check Analysis Limits, Nickel, Nickel Alloys and Cobalt Alloys
AMS2371 Quality Assurance Sampling and Testing, Corrosion and Heat-Resistant Steels and Alloys, Wrought Products and Forging Stock
AMS2750 Pyrometry
AMS2806 Identification, Bars, Wire, Mechanical Tubing, and Extrusions, Carbon and Alloy Steels and Corrosion and Heat-Resistant Steels and Alloys
AMS2807 Identification, Carbon and Low-Alloy Steels, Corrosion and Heat-Resistant Steels and Alloys, Sheet Strip, Plate, and Aircraft Tubing
ASTM A 480/A 480M Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
ASTM E 8/E 8M Tension Testing of Metallic Materials
ASTM E 18 Rockwell Hardness of Metallic Materials
ASTM E 354 Chemical Analysis of High-Temperature, Electrical, Magnetic, and Other Similar Iron, Nickel and Cobalt Alloys
11 PRODUCTS

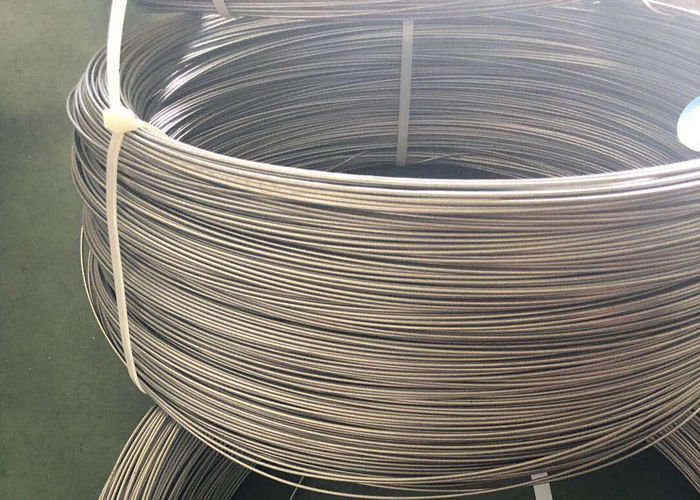

Stellite™ 6B Ø 0.1 - 3.0 mm wire, weight 15-20kg per roll
Stellite™ 6K Ø 0.1 - 3.0 mm wire, weight 15-20kg per roll
12 COMPETITIVE ADVANTAGE
(1) More than 50 years experience of research and develop in high temperature alloy, corrosion resistance alloy, precision alloy, refractory alloy, rare metal and precious metal material and products.
(2) 6 state key laboratories and calibration center.
(3) Patent and innovative technologies.
(4) High performance.
(5) Ultra-pure smelting process VIM + IG-ESR + VAR
13 BUSINESS TERM
| Minimum order quantity | Negotiable |
| Price | Negotiable |
| Packaging details | Water prevent, seaworthy transport, mill’s export standard packing |
| Mark | As per order |
| Delivery time | 60-90 days |
| Payment terms | T/T, L/C at sight, D/P |
| Supply ability | 100 metric tons / Month |
