Product Details:
|
| Material: | UNS N02270, Nickel Based Alloys | ||
|---|---|---|---|
| High Light: | nickel chromium iron alloy,high performance alloys,Nickel 270 Special Alloys Wire |
||
Nickel 270, UNS N02270 W.Nr. 2.4050 sheet, strip, foil, wire(round, flat, square, profile) for electronic part
1 PRODUCT
Nickel 270, UNS N02270 W.Nr. 2.4050 semi-product for electronic parts.

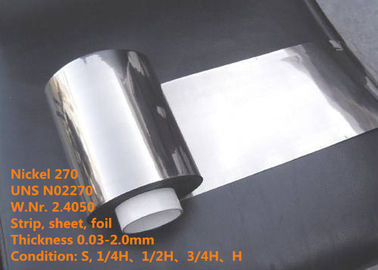

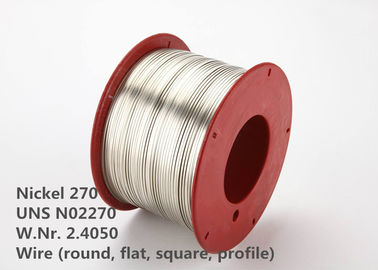

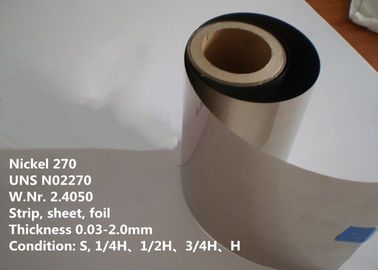

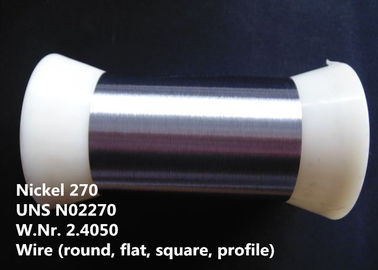

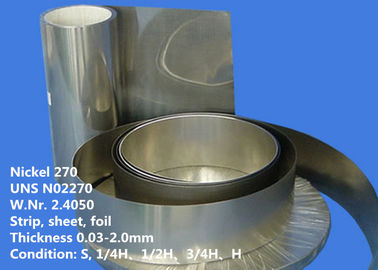

Nickel 270 is available as sheet, strip, foil, wire(round, flat, square, profile), bar, tube etc.
2 EQUIVALENT DESIGNATION
UNS N02270, W.Nr. 2.4050
3 APPLICATION
Since its extreme purity, Nickel 270 is useful for components of hydrogen thyratrons. It is also used for electrical resistance thermometers, platter bars, passive cathode, fluorescent lamp components, electrolytic cell anodes, and other electrical and electronic assemblies.
4 OVERVIEW
Nickel
Commercially pure or low-alloy nickel has characteristics that are useful in several fields, notably chemical processing and electronics. Nickel is highly resistant to various reducing chemicals and is unexcelled in resistance to caustic alkalies. Compared with nickel alloys, commercially pure nickel has high electrical and thermal conductivity. It also has a high Curie temperature and good magnetostrictive properties. Annealed nickel has a low hardness and good ductility and malleability. Those attributes, combined with good weldability, make the metal highly fabricable. Nickel has a relatively low work-hardening rate, but it can be cold worked to moderately high strength levels while maintaining ductility.
Nickel 270
Nickel 270 is a high purity grade of nickel made by powder metallurgy. It has a low base hardness and high ductility. It is essentially free from non-metallic inclusions.
Nickel 270 is non hardenable by heat treatment.
5 CHEMICAL COMPOSITION
Table 1 (wt%)
| Ni+Co | C | Cu | Fe | Mg | Mn | S | Si | Co | Ti |
| ≥99.9 | ≤0.02 | ≤0.01 | ≤0.05 | ≤0.005 | ≤0.003 | ≤0.003 | ≤0.005 | ≤1.0 | ≤0.005 |
6 PHYSICAL PROPERTIES
Density: 8.91 g/cm3 (0.322 lb/in3)
Melting range: 1454°C (2650°F)
Specific heat: 460 J/kg•°C (0.110 Btu/lb•°F)
Permeability: Ferromagnetic
Coefficient of Expansion : (70-200°F / 20-95°C): 7.4x10-6 in/in•°F (13.3um/m•°C)
Thermal Conductivity: 595 Btu•in/ft2•h•°F (86.0W/m•°C)
Electrical Resistivity: 45 ohm•circ mil/ft (0.075uohm•m)
Shear modulus: 82 kN/mm²(11893 ksi)
Elasticity modulus: 207 kN/mm²(3000 ksi)
7 MECHANICAL PROPERTIES
Typical mechanical properties of annealed Nickel 270
| Tensile strength | Yield Strength (0.2% Offset) | Elongation | Hardness | ||
| MPa min. | Ksi min. | MPa min. | Ksi min. | % min. | Rb max. |
| 345 | 50 | 110 | 16 | 50 | 66 |
Tensile strength and elongation at temperatures above 315°C (600°F) dropped significantly.
Working temperature is related to environment, load and size range.
| Condition | Approximate tensile strength | |
| MPa | ksi | |
| Annealed | 300-450 | 44-65 |
| Cold drawn hard | 600-800 | 87-116 |
Properties: Tempered
Nickel 270 can be cold worked to various tempers.
8 CORROSION RESISTANCE
Refer to NACE (National Associate of Corrosion Engineers) for recommendations.
9 STANDARD SPECIFICATION
ASTM F-3
10 COMPETITIVE ADVANTAGE:
(1) More than 50 years experience of research and develop in high temperature alloy, corrosion resistance alloy, precision alloy, refractory alloy, rare metal and precious metal material and products.
(2) 6 state key laboratories and calibration center.
(3) Patented technologies.
(4) Ultra-purity smelting process: VIM + IG-ESR + VAR
(5) Excellent high performance.
11 BUSINESS TERM
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Water prevent, seaworthy transport, mill’s export standard packing |
| Mark | As per order |
| Delivery Time | 60-90 days |
| Payment Terms | T/T, L/C at sight, D/P |
| Supply Ability | 100 metric tons / Month |
